TS5 (1.0m) - Thunderbolt Station 5 (Space Gray)

Please note: NO VAT will be charged on your order, BUT VAT will be due, and DHL will charge a handling fee for all imports into the EU from the UK. Charges can range from 80 - 120 EUROS for imports from outside the EU.

All orders placed on the EU Store ship from the UK. Shipping is charged at €9,99 per order.

The TS5 is built from the ground up with connectivity in mind. It is packed with essential ports, ready to take your workflow to the next level.

This dock features a combined total of 15 ports, including four Thunderbolt 5 ports with a data transfer rate of 80Gb/s. Having four Thunderbolt 5 ports is ideal for users who want the flexibility to connect the exact devices they want to the TS5.

The 140W power delivery is perfect for even the most demanding laptops like the 16” MacBook Pro with M3/M4 Pro or Max chips that require 140W. The 240W power supply is more compact than previous generations, and the built-in 2.5GbE port is 2.5X faster than traditional 1GbE.

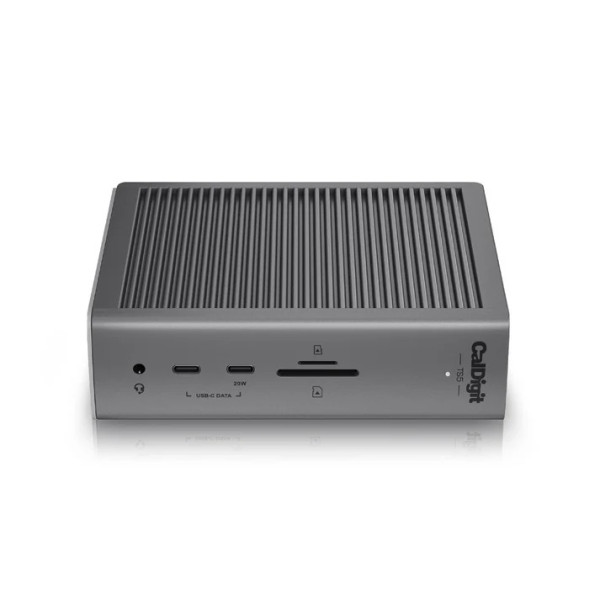

The TS5 features 5 USB ports, including 3 USB-C ports and 2 USB-A ports. All of the USB-C ports provide 10Gb/s performance, and one of the front-facing USB-C ports provides up to 20W of power. The remaining USB-C ports provide 7.5W of power.

One of the USB-A ports offers 10Gb/s performance, while the second port provides USB 2.0 (480Mb/s) performance. Both USB-A ports provide 7.5W of power for accessories.

All of the USB 10Gb/s ports and all of the Thunderbolt 5 ports provide offline charging functionality (The USB 2.0 port does not support offline charging).

When connecting displays to the TS5, the dock supports up to dual 4K 240Hz displays on Macs that support these resolutions. On supported Windows Thunderbolt 5 PCs, the TS5 supports up to triple 4K 144Hz displays¹.

The TS5 is compatible with Thunderbolt 5, Thunderbolt 4, USB4, and USB4 v2 Macs/PCs, as well as USB-C-based computers. It is also compatible with Thunderbolt 3 Macs. For maximum functionality, the TS5 should be used with a Thunderbolt 5 or USB4 v2 host computer.

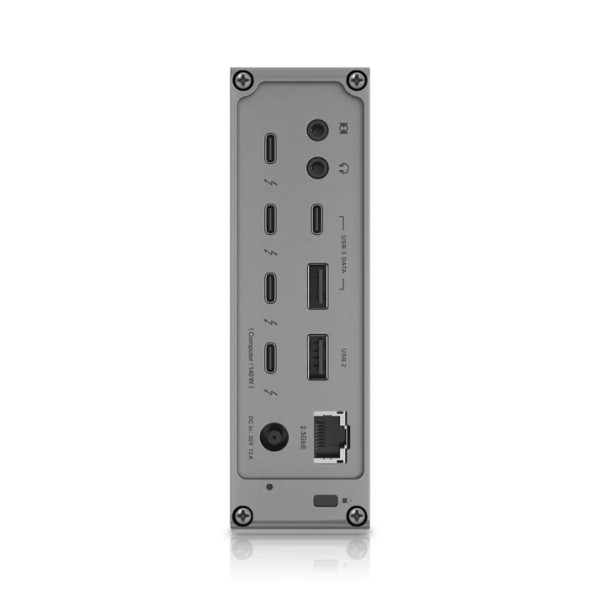

Interface

1 x Thunderbolt 5 Host (Up to 120Gb/s)

3 x Thunderbolt 5 (80Gb/s)

3 x USB-C (10Gb/s)

1 x USB-A (10Gb/s)

1 x USB-A (480MB/s)

1 x SD 4.0 (UHS-II)

1 x microSD 4.0 (UHS-II)

1 x 2.5 Gigabit Ethernet (PCIe-Based)

1 x Front Combo Audio In/Out (3.5mm)

1 x Rear Audio Out (3.5mm)

1 x Rear Audio In (3.5mm)

1 x DC In (20V 12A)

Minimum System Requirements

macOS 15 or above

Windows 10/11 or above

iPadOS

Chrome OS

Thunderbolt 5 Computer

Thunderbolt 4 Computer

Thunderbolt 3 Mac

USB-C (USB4 or USB4 v2) Computer

USB-C Mac, PC, Tablet, Phone

Thunderbolt/USB4 iPad

Power Delivery

Thunderbolt 5/USB4 Host Port: Up to 140W

Each Downstream Thunderbolt 4/USB4 Port: 15W

Front 20W USB-C Port: 20W

Remaining USB-C Ports: 7.5W

USB-A Ports: 7.5W

Size & Weight

Height: 5.55” (141.0mm)

Width: 1.65” (42.0mm)

Length: 4.46” (113.4mm)

Weight: 1.41lbs (0.64kg)

In the Box

1 x CalDigit TS5

1 x Thunderbolt 5 Braided Cable (1.0m)

2 x Rubber Feet Strips

1 x Power Cord

1 x Power Supply (240W)

Warranty

2 Years

1 Up to Dual 4K 240Hz resolution is supported on compatible macOS & Windows computers that support that resolution. Triple displays on Windows require a compatible Thunderbolt 5 host computer. macOS does not support Triple displays via a Thunderbolt 5 connection.

2 Ethernet is only supported on Thunderbolt-based hosts, as well as USB4 hosts that support PCIe. Please contact your USB4 host manufacturer for information on PCIe support.

3 The second USB controller is only supported on Thunderbolt-based hosts, as well as USB4 hosts that support PCIe. Please contact your USB4 host manufacturer for information on PCIe support.

Additional Information

- The TS5 is not compatible with Thunderbolt 3 Windows PCs.
